Castel
Ball Valves
Ball valves series 65-E are specifically designed to be suitable for CO₂ transcritical and subcritical systems with maximum working pressure up to 150 bar.
Castel
Company profile
01 Overview
01
- The stainless steel and brass body of the Castel ball valves are appropriately scaled. Use of a cap permits access to and protection of the maneuvering rod and guarantees an excellent hermetic seal.
- Ensures the internal equilibrium of pressures when the valve is closed
02
Models
- Series 6588E – Body and Connections are made of AISI 304 steel, from 6mm to 28mm, permitting butt welding (Ps 150bar)
- Series 6578E – Brass body and Connections are made of AISI 304 steel, from 6mm to 73mm, permitting butt welding (Ps 140bar)

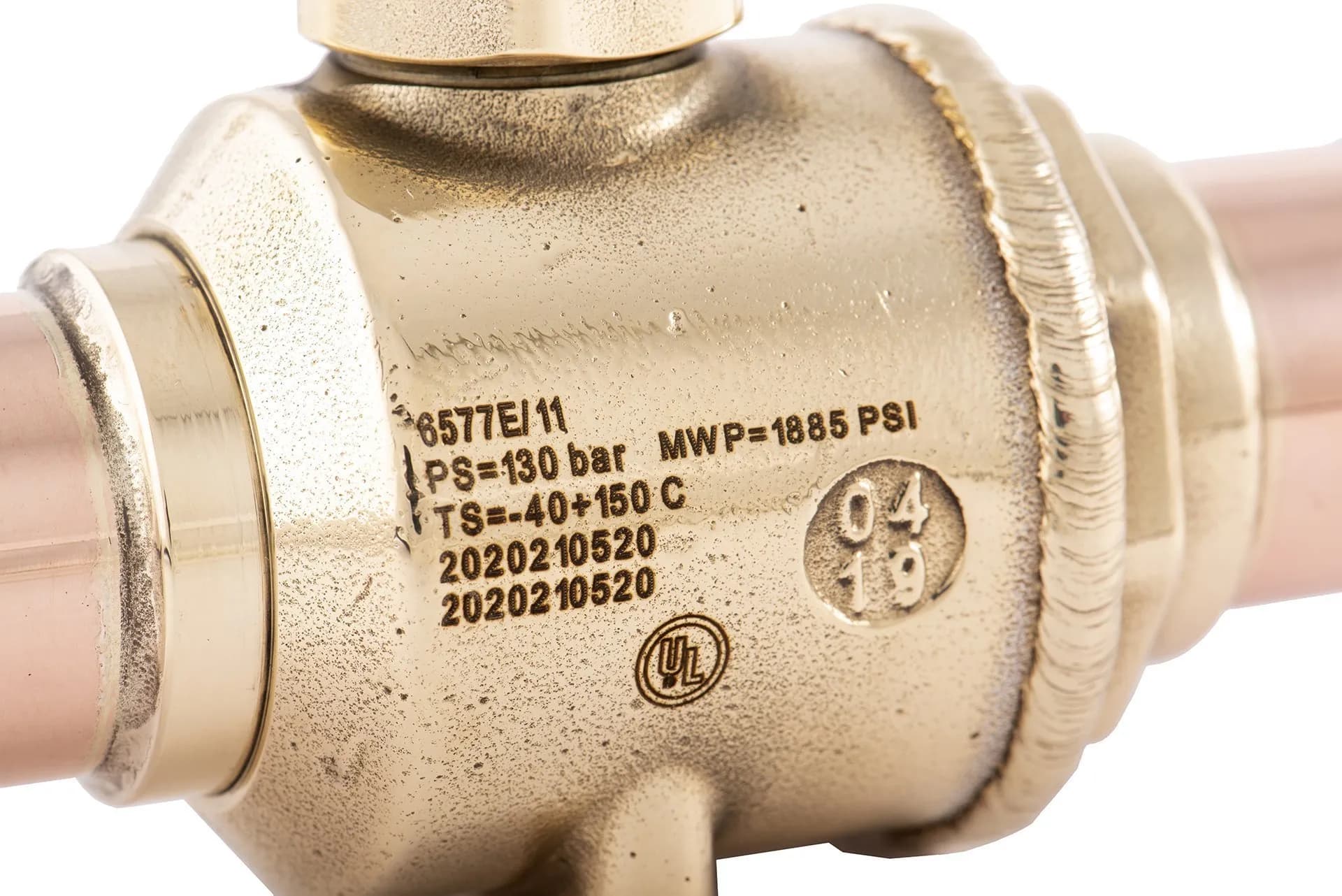

- Series 6577E – Brass body and Connections are made of copper K65, from ¼” to 2.1/8” , solder welding (Ps 130bar)
- Series 6570E – Brass body and Connections are made of copper, from ¼ to 2.1/8”, solder welding (Ps 80 bar)
- Series 6570EL – Brass body and Connections are made of copper, from ¼ to 2.1/8”, solder welding (Ps 60 bar)
Available Castel ball valves with access fitting and Actuator ON/OFF or modulating output 0-10V
03
System Specifications
Connections
6mm to 73mmMWP (maximum working pressure)
up to 150 barTS min / TS Max
-40°C / 150°C
02 Technical dossier
Specifications
2 data points · as published by Castel
- Refrigerant
- CO₂
- Category
- Components
01Refrigerant
1 entry
- Refrigerant
- CO₂
02Certification & markets
1 entry
- Region
- Africa, Asia, Australia & NZ, China, Europe, Global, Japan, North America, South America
Talk to Castel about the Ball Valves.
Send your enquiry to Castel — ask for specifications, pricing and availability for your project.
